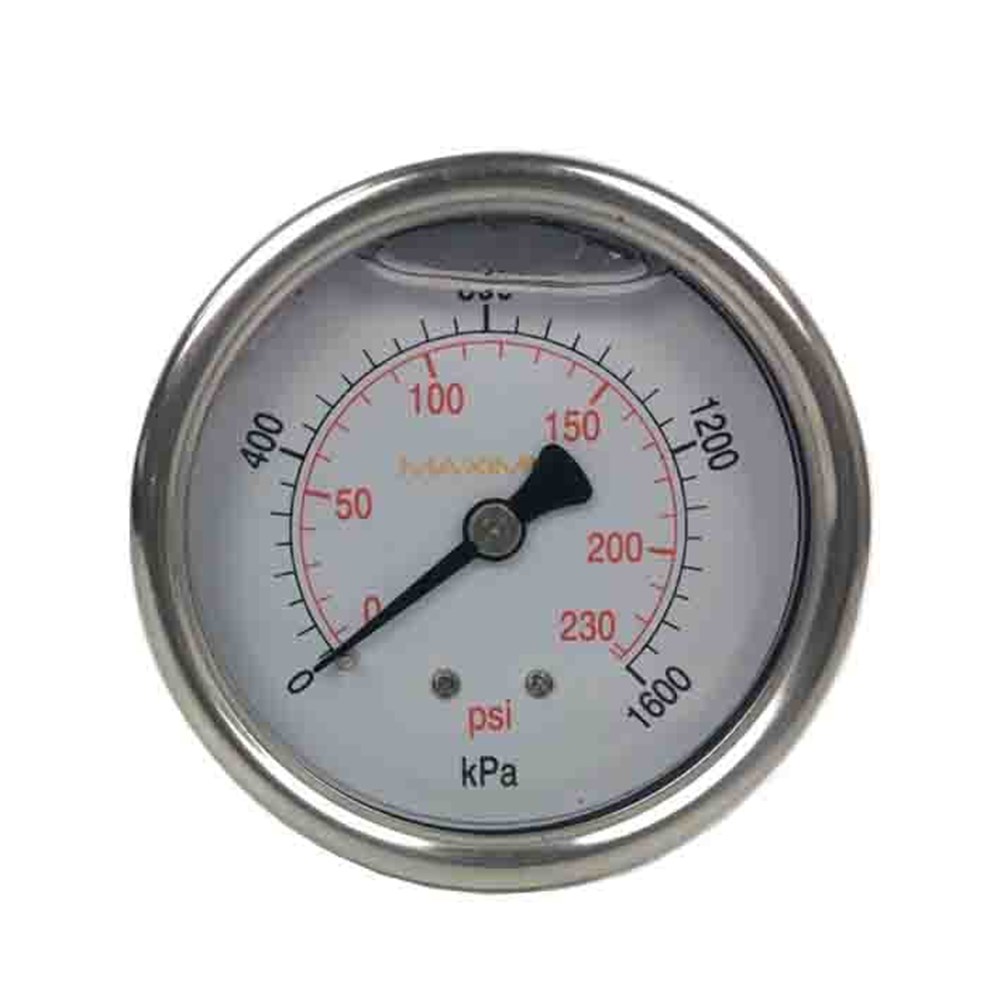

Pressure gauges display positive pressures generated within hydraulic and pneumatic pipelines between valves, filters and pumps and can be calibrated with singular or multiple units of measurement, available with casing materials of black steel or stainless steel, threaded with BSPT, BSPP or NPT in materials of brass or stainless steel. Gauges can also be filled with Glycerine to reduce surge and shock generated in systems.
- Case in stainless steel, grade 304
- Dial size 50 mm (2")
- Face is shatterproof Polycarbonate material
- Rear entry brass thread 1/4" BSPT
- Dual calibration of Kpa and PSI
- Bourbon tube and movement are copper alloy
Applications include:
- Industrial
- Process control
- Irrigation
- Petro-chem
- Marine
