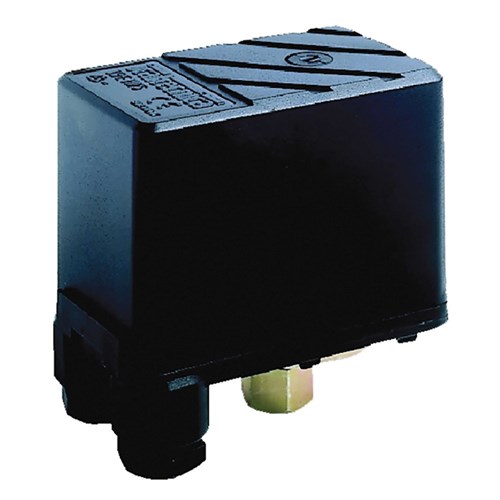

RMP-12 Pressure Switch

Product Code: PGUAR-34897

RRP $89.00
$89.00 ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each
Description
The REEFE RMP Range of Pressure Switches is a high-quality, reliable pressure with for controlling water pressure booster sets in conjunction with an expansion vessel. The pressure switch has an adjustable cutout and differential (cut-in) pressure to suit your application. The switch will work with fresh water and seawater and there is a 1/4" female BSP connection, with an electrical connection via screw terminals. These 2 pole N/C (normally closed) pressure switches are suitable for single-phase pumps up to 1.5 kW or as a digital signal to control 3-phase pumps using a control panel. The RMP-CONTROL Control Switch is ideal for dedicated control panel applications with N/C (Normally Closed) and N/O (Normally Open) contacts. These switches are an ideal replacement for Square D and XMP Pressure Switches.
Features
  • Stainless Steel Connection
  • Oversize Contacts (excluding RMP – FSG)
  • Rotating 1/4″ Female BSP Connection for Easy Installation*
  • Ambient Temperature 0°C – 55°C
  • Fluid Temperature 5°C – 55°C
  • 20 Bar Burst Pressure

CONSTRUCTION

  • Ingress Protection
  • • IP44 on RMP – FSG
  • • IP44 on other models
  • Stainless Steel Connection
  • Size 104 x 60 x 100mm

APPLICATIONS

  • Pressure Pumps
  • Booster Pumps
  • Control Panels
Technical Specifications
Brand Reefe
End Connection 1 1/4? Female-Rotating Nut
Voltage 250VAC 50Hz
