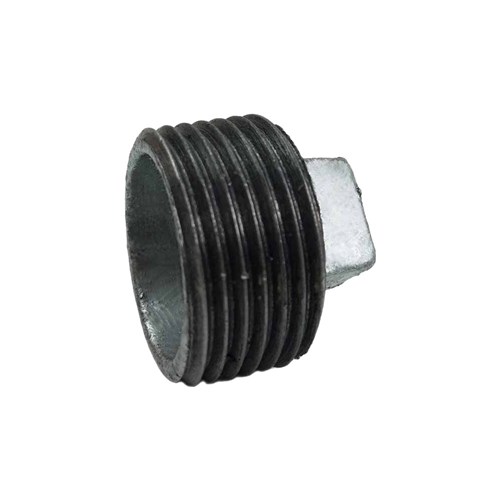

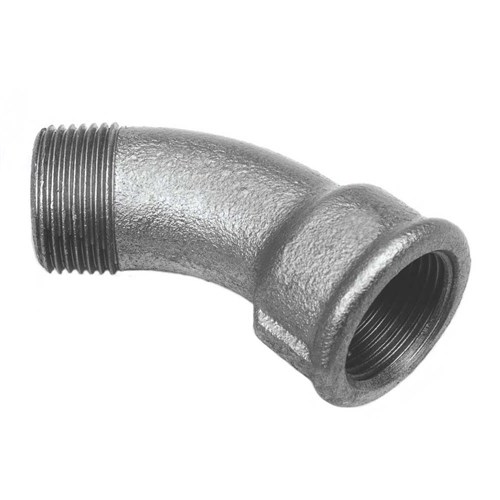

These malleable iron fittings are used in multiple applications where low to medium pressures are used to transfer water, steam, gas and air.
- Malleable Iron material conforms to ASTM A197 and ASTM A47
- Dimensions conform to EN 10242
- Galvanised surface finish
- Economical
- Large range of sizes
- BSP threads to ISO 7.1
- Working pressure when used with water is 200 psi @ 3:1 safety factor
- Working pressure when used with air, gas and steam is 150 psi @ 3:1 safety factor
Applications include:
- Steam lines
- Air lines
- Irrigation
- Gas
