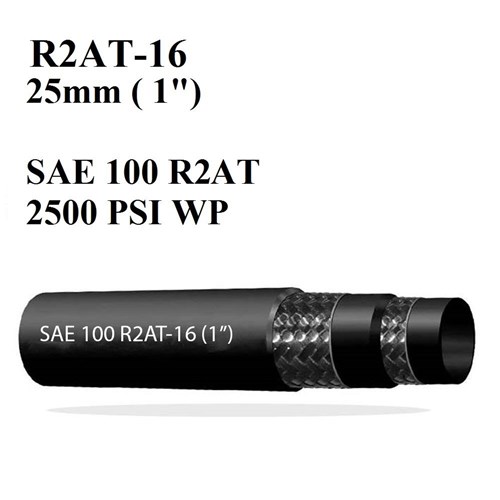

CUSTOMISED HYDRAULIC HOSE ASSEMBLY - R2AT-16 (1") BSP - JIC

Product Code: HHR02C-16

BUY ONLINE FROM A DISTRIBUTOR --- CLICK HERE
RRP $0.00
$0.00 ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each

Create your kit

1. Core Components

Core Components Description
LICFA Labour Charge - FITTING ASSY
HYC021J17-1616 CRIMP CPLG 45S ELB - BSPF S/W
HYC021J53-1621 CRIMP CPLG 45S ELB - JICF S/W
HYFRBG-16 BANJO BOLT - BSP 1

2. Customise Product

2. Variable Quantity Items:

HYD HOSE - R2AT No-Skive HHRR02-16 Size: 1" Cut Length MTR 1.0000 $94.28
CRIMP CPLG - BSPPM HYC021A10-1616 Size: 1" x 1" EA 1.0000 $79.98
CRIMP CPLG - BSPPF S/W HYC021A17-1616 Size: 1" x 1" EA 1.0000 $67.57
CRIMP CPLG - BSPPF S/W HYC021A17-1620 Size: 1" x 1.1/4" EA 1.0000 $130.39
CRIMP CPLG - BSPTM HYC021A22-1616 Size: 1" x 1" EA 1.0000 $62.05
CRIMP CPLG - BSPTM HYC021A22-1620 Size: 1" x 1.1/4" EA 1.0000 $153.08
CRIMP CPLG - JICM HYC021A50-1621 Size: 1" x 1.5/16" EA 1.0000 $70.33
CRIMP CPLG - JICM HYC021A50-1626 Size: 1" x 1.5/8" EA 1.0000 $89.64
CRIMP CPLG - JICF S/W HYC021A53-1617 Size: 1" x 1.1/16" EA 1.0000 $78.60
CRIMP CPLG - JICF S/W HYC021A53-1621 Size: 1" x 1.5/16" EA 1.0000 $65.23
CRIMP CPLG - JICF S/W HYC021A53-1626 Size: 1" x 1.5/8" EA 1.0000 $115.84
CRIMP CPLG 90S ELB - BSPF S/W HYC021G17-1616 Size: 1" x 1" EA 1.0000 $110.32
CRIMP CPLG 90S ELB - JICF S/W HYC021G53-1621 Size: 1" x 1.5/16" EA 1.0000 $114.46
CRIMP CPLG 90S ELB - JICF S/W HYC021G53-1626 Size: 1" x 1.5/8" EA 1.0000 $93.90
CRIMP CPLG 90L ELB - JICF S/W HYC021H53-1621 Size: 1" x 1.5/16" EA 1.0000 $154.45
PLASTIC GUARD - 34.0 mm ID HPPT01-040 MTR 1.0000 $25.75

3. Optional Items:

Fitting off-set angle x 0 Straight Ends or One angle Only LHAO-000 1.0000 $0.00
Fitting off-set angle x 45 LHAO-045 1.0000 $0.00
Fitting off-set angle x 90 LHAO-090 1.0000 $0.00
Fitting off-set angle x 135 LHAO-135 1.0000 $0.00
Fitting off-set angle x 180 LHAO-180 1.0000 $0.00
Fitting off-set angle x 225 LHAO-225 1.0000 $0.00
Fitting off-set angle x 270 LHAO-270 1.0000 $0.00
Fitting off-set angle x 315 LHAO-315 1.0000 $0.00

4. Add to Cart

$$313.80 $0.00 $0.00
Description
 Easy How To Steps
1  Recognise Hose - Type & Size        See How     https://www.batind.com.au/Themes/BPDTHEME01/theme-client-updates/Hose Identification.pdf?u=1Ulg4d5
2  Identify End Connections               See How
3  Measure Assembly Hose length    See How     https://www.batind.com.au/images/Measure Assembly.pdf?u=1UliN7
4  Build Your Hose                                See How
5  Track Your Delivery
