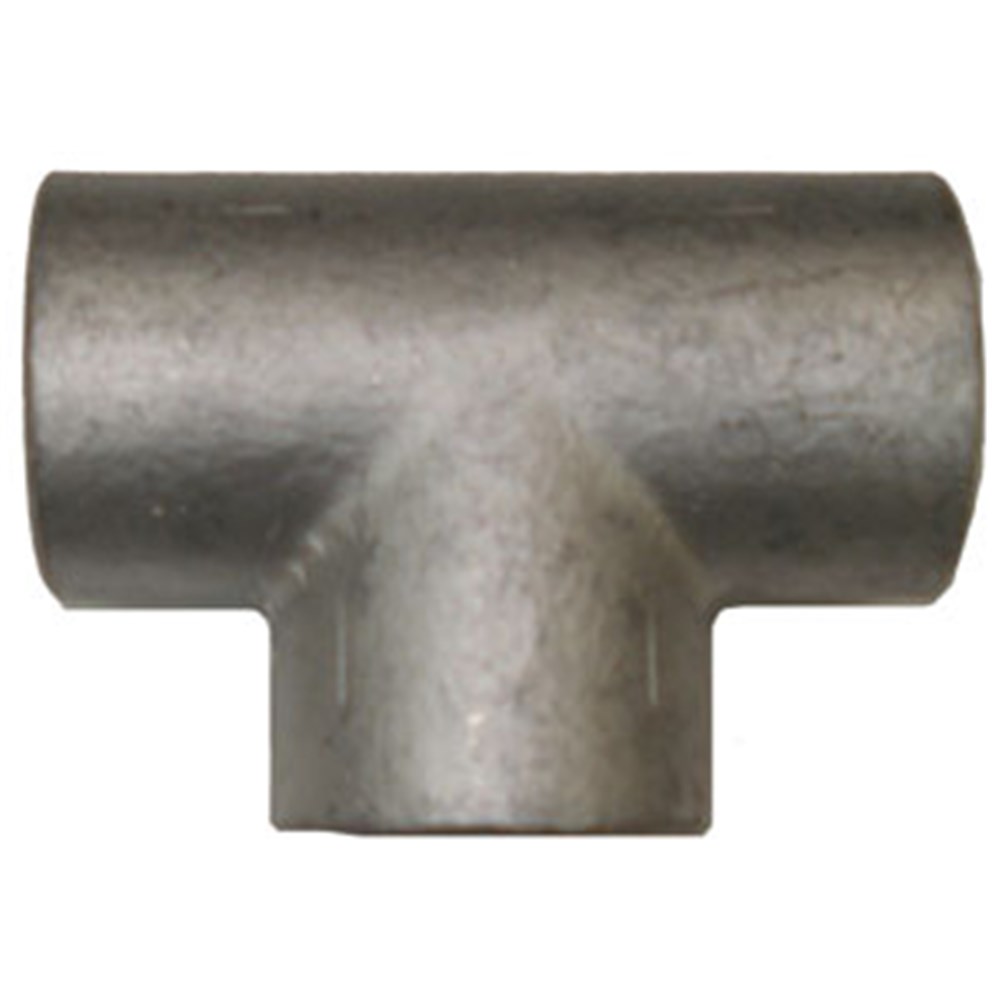

These carbon steel 3000 LB threaded fittings are used extensively in the fabrication of piping installations where high pressures are used, suitable for pipelines handling water, steam, oil and gas.
- Materials and dimensions conform to ASTM A105, ANSI B16.11, BS 3799 and MSS SP-83
- Blackened surface finish
- BSP threads to ISO 7.1
- NPT threads to ANSI B1.20.1
- Working pressure for forged and bar components is 725 psi @ 3:1 safety factor
- Working pressure for pipe components is 240 psi @ 3:1 safety factor
- Working pressure for fabricated components above 65 mm is 365 psi @ 3:1 safety factor
Applications include:
- General engineering
- Oil & Gas transfer lines
- Steam lines
- Refrigeration
- Gas
