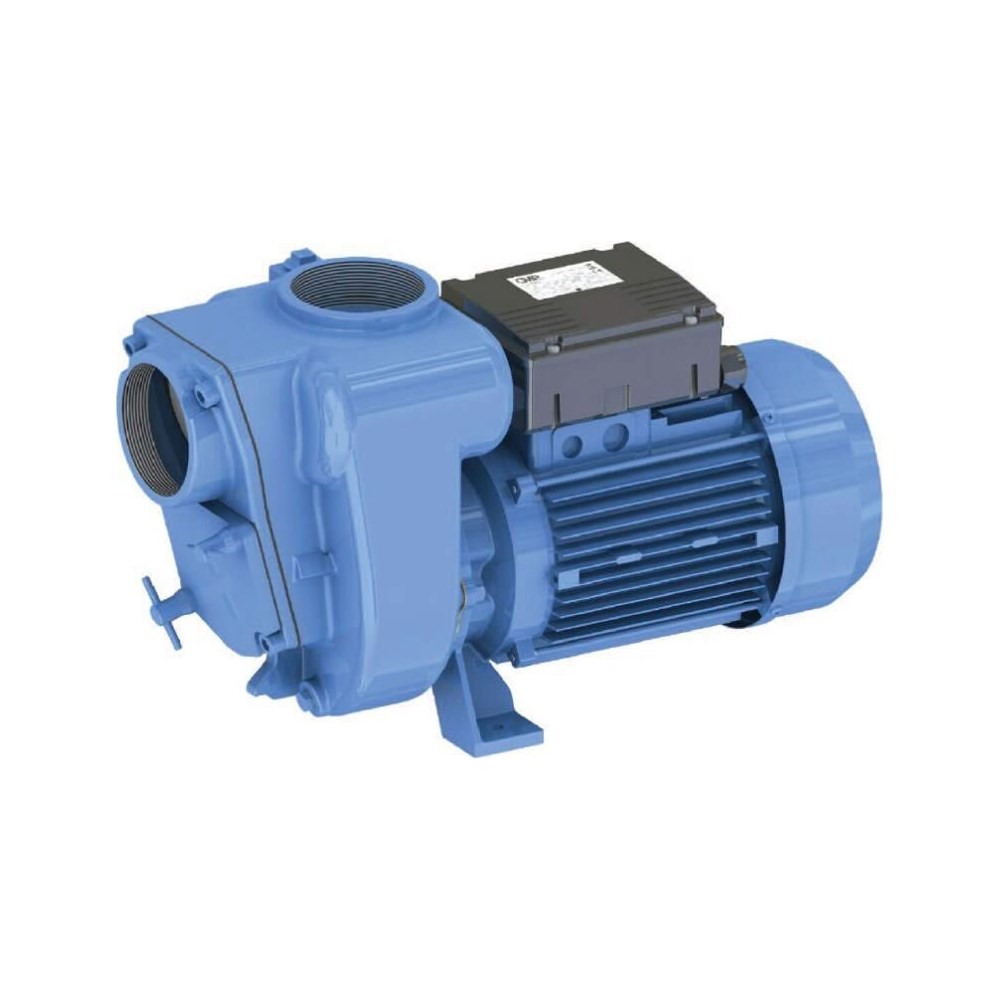

AUSSIE SEMI TRASH PUMP

Product Code: PGUA-B4KQST-3

BUY ONLINE FROM A DISTRIBUTOR --- CLICK HERE
RRP $5037.00
$5037.00 ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each
Description
  • Heavy duty cast construction
  • Open non clog style impeller for passing spherical, compressible solids in suspension.
  • Self primes from 6 metres vertical lift
  • Front mounted clean out port
  • Close coupled to Heavy duty TEFC single or three phase electric drive motor IP rated.
  • Cast Iron foot mounting on pump up to 2.2kW
  • Pumps 4kW & over mounted on steel base plate.
  • Silicone Carbide mech seal/alumina counterface with Nitrile rubber seals standard, option of tungsten carbide with Viton.
  • 316 Stainless steel motor shaft
  • No power lead or plug supplied

Industrial Applications

  • Industrial Waste
  • Livestock effluent
  • Sewage
  • Abattoir waste
  • Livestock waste
  • Wash by water recirculation
  • Batch plant
  • Mineral Processing
  • Quarries
  • Food Processing
Technical Specifications
Keywords Industrial Waste
Brand GMP
Inlet Port 100 mm (4")
Insulation Class IP 55
Motor - Electrics 3 Phase x 2 Pole
Motor - Rated KW 4.0
Pump - Discharge Port 100 mm (4")
Pump - Flow Rate L/min 1600
Pump - Head, max metres 14.0
Pump - Self Prime Metres 6.0
Pump - Shaft Seal Silicon Carbide
Pump - Solid matter max mm 37
Seal Material NBR
Working Pressure PSI 20
